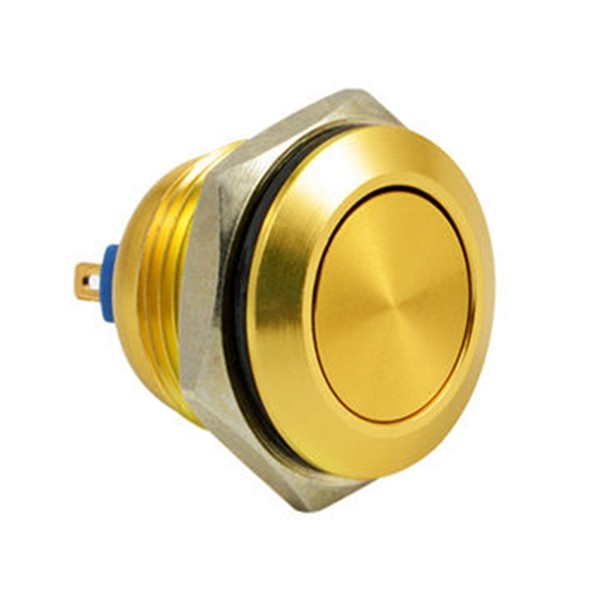

19MM IP65 Button Switches

L&G Metal Pushbutton Switches can be found on valuable machine and public ticket dispenser applications, we could offer 12mm,16mm, 19mm, 22mm, 25mm,30mm and high current switches. Along with other industrial type applications that require vandal resistance in a public setting. With a wide variety of options, including illuminated, sealed and long life expectancy. The distinctive of L&G metal switches are light weight, high strength, corrosion resistance, aesthetic, easy heat dissipation and more.

Applications of L&G Anti-vandal Switches include industrial control instruments, medical equipment, security monitoring equipment, vehicle peripherals, audio-visual equipment, energy storage equipment.

APPLICATIONS
Industrial control products, Medical equipment, Communication equipment.

Model Description
Model NO.PBS
Mounting diameter12,16,19,22,25mm etc
Head shapePlat Head/High Head
Switch CombinationNO,NC
Operation typeMomentary/self locking
Illuminating typeAnnular,power symbol,dot
Illuminating colorred,green,blue,yellow,orange,white,purple,pink
Lamp voltage2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell materialStainless steel,aluminum oxide,copper plating

Application:

They are widely used in TV, VCD, juicer, heater, consumer electronics,  household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.

The Others Parameters
ProjectParameterProjectParameter
Contact typeSlow moving single contactOperation ScheduleConnected:1.5mm,Total:3.5mm
Contact Resistance≤50mΩActuating Forceabout 8N
Insulation  Resistance≥1000mΩMounting panel thickness≤13mm. customised the others
Dielectric Strength1000VAC minNut torque5~14N.m
Ambient  Temperature-30ºC~+80ºC

Outshell/Press Key




Stainless Steel/aluminum oxide/copper plate




Protection LevelsIK10DiffuserPC
Electrical Life

Rated:2A250VAC-      100,000 times

Rated:5A250VAC-50,000    times

Rated:8A250VAC-20,000  times

Reated:10A250VAC-  20,000 times

Nut


Base Seat/

Bottom Seat

Nickel brass



PA66

Mechanical Life

Maintained-200,000 times

Self-locking-800,000    times


Pins                      Contact


PA66

H65 Silver Plated

WaterproofIP65SpringImproved steel wire
Switch Rated Load

Project

Parameter
Reated Insulation VoltageAC250V
Fusing Current15A
Rated VoltageDC12VDC24VAC110VAC250V
Rated CurrentNonreactive Load10101010
Inductive Load3333


Led Lamp Parameters
ProjectParameter
Led typeHigh Brightness LED lamp,cool
Luminous colorRed,Green,Blue,Yellow,Orange,White,Purple,Pink
Rated VoltageAC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current≤20mA
Reference Life40,000hours
