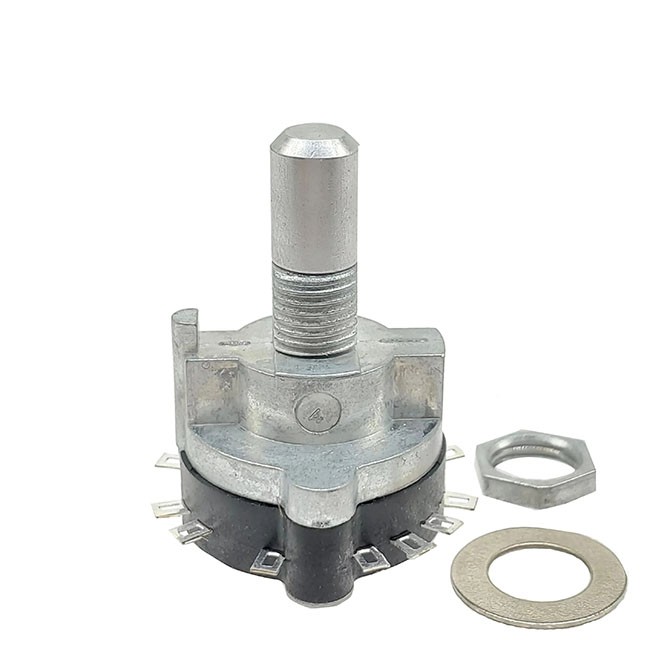

RS19多回路旋转开关具有1~4极和2~12位。产品广泛应用于:家用电器、厨房电器、园艺工具、灯具、仪表设备、安防设备、汽车行业。
Mechanical specifications
Total rotational angle
270°
Changeover Angle
30°
Detent torque
200~ 500 gf.cm(2.0 ~ 5.0mN.m)
Push-pull strength of shaft
8 Kgf. Max
Rotation Stopper Strength
5 Kgf.cm Max
Bushing nut tighten strength
0.8 Nm(8 kgf.cm) Min.
Electrical specifications
Number of Circuit
1-4
Number of Position
2-12
Handover Timing
No-Shorting
Contact Resistance
100 mΩ Max.
Rating
0.15A 12V DC
Withstand voltage
Without arcing or breakdown
Insulation resistance
Between individual terminals and bushing: 100MΩ Min.
