24 Position Rotary Switches

RS26 Rotary Switch have SP3T SP4T SP5T SP6T SP7T SP8T SP9T SP10T SP12T SP13T SP15T SP16T SP18T SP20T SP24T DP3T DP4T DP5T DP6T  DP8T DP10T DP24T DP12T 3P8T 4P3T 2P9T 4P6T etc variety of Angle Rotary Switch.

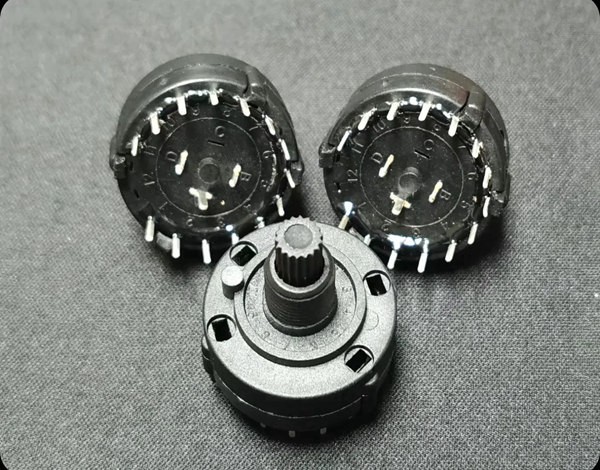

1-POLE / 24 POSITION, By spacer clips can be selected in the 24 POSITION,GET EXACTLY AS PICTURE SHOW
Position this switch can be adjusted, you can set most needed Position (picture just for show, does not mean you actually buy Position items)
Usage:
1.Remove the screw and washer, you can see the band switch labeled Position numbers next to the square hole
2.gaskets, you can see there is a raised portion
3.would be raised on the part of the gasket into the square hole you need the number next to the Position and tighten the screws.


Product Name: Rotary Switch

Model No. : RS26-1-24-20K

Type : 1 Pole 24 Positions

Rated Power:300mA, 125V AC.350mA, 30V DC

Max. Operating Voltage : 250V AC/DC

Max. Operating Current : 5A, non-switching

Durability :>=10000 times

Withstand Voltage:1500V Max

Insulation Resistance:100MΩ min.

Temperature Range:  -30°C-85°C

Shaft Size:  6 x 11mm / 0.236" x 0.43"(Diameter*L)
