RV09 Variable Resistor RV09 Variable Resistor RV09 Variable Resistor RV09 Variable Resistor RV09 Variable Resistor

RV09 Variable Resistor

RV09 Variable Resistor Feature:Smooth rotation feeling
RV09 Variable Resistor variety of DVD players, CD portable audio, video monitors and other audio equipment control; Audio mixer, electronic musical instruments control; car navigation, car audio.

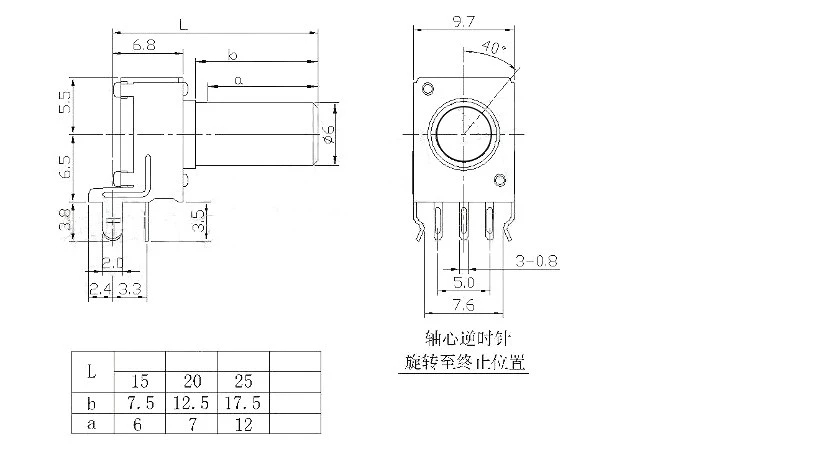

LEGTOP RV09 Potentiometer datasheet

LEGTOP RV09 Potentiometer datasheet

Product Paramenters

Total impedance

10-500kΩ

Allowable error value of total impedance

±20%

Impedance characteristics

B Taper

Maximum operating voltage

AC 50V DC 12V

Murmur

100 mv Max

Insulation resistance value

100 MΩ Min DC 250V

Withstand voltage characteristics

Ac 300V for 1 minute

Residual resistance value

20Ω Maxa
