Dimmer Potentiometer RV17

RV17 Dimmer Potentiometer switch can make 1K to 2M resistance value.RV17 Potentiometer can produce 10A switch function with press or rotary type.Mainly used for LED power supply, speed regulator, dimmer, high-power plant lamp, audio, household appliances and other products

Specification

Mechanical specification

Total rotational angle

270°/300°±5°

Rotational Torque

2-20m N.m (20~200gf.cm)/(10~100gf.cm)

Rotational stop strength of the shaft

5kgf.cm

Shaft push and pull strength

80N(8kgf)

Click torque

50-150 gf.cm

Electrical Specification

Total resistance

5KΩ-1MKΩ

Total resistance tolreance

±20%(more than 1M Ω ±30%)

Rated Power

0.2W

Max Operating voltage

Taper B: 200V AC

other than B: 150V AC

Resistance taper

A,B

Residual resistance

R ≥250K Ω 0.1% max. of total resistance

250KΩ >R>10KΩ   20Ωmax

10K Ω ≥R   10Ωmax

Insulation resistance

more than 100MΩ at DC 500V

Dielectric Strength

1 minute or more at DC 500V

Rotational Life

15,000 cycles

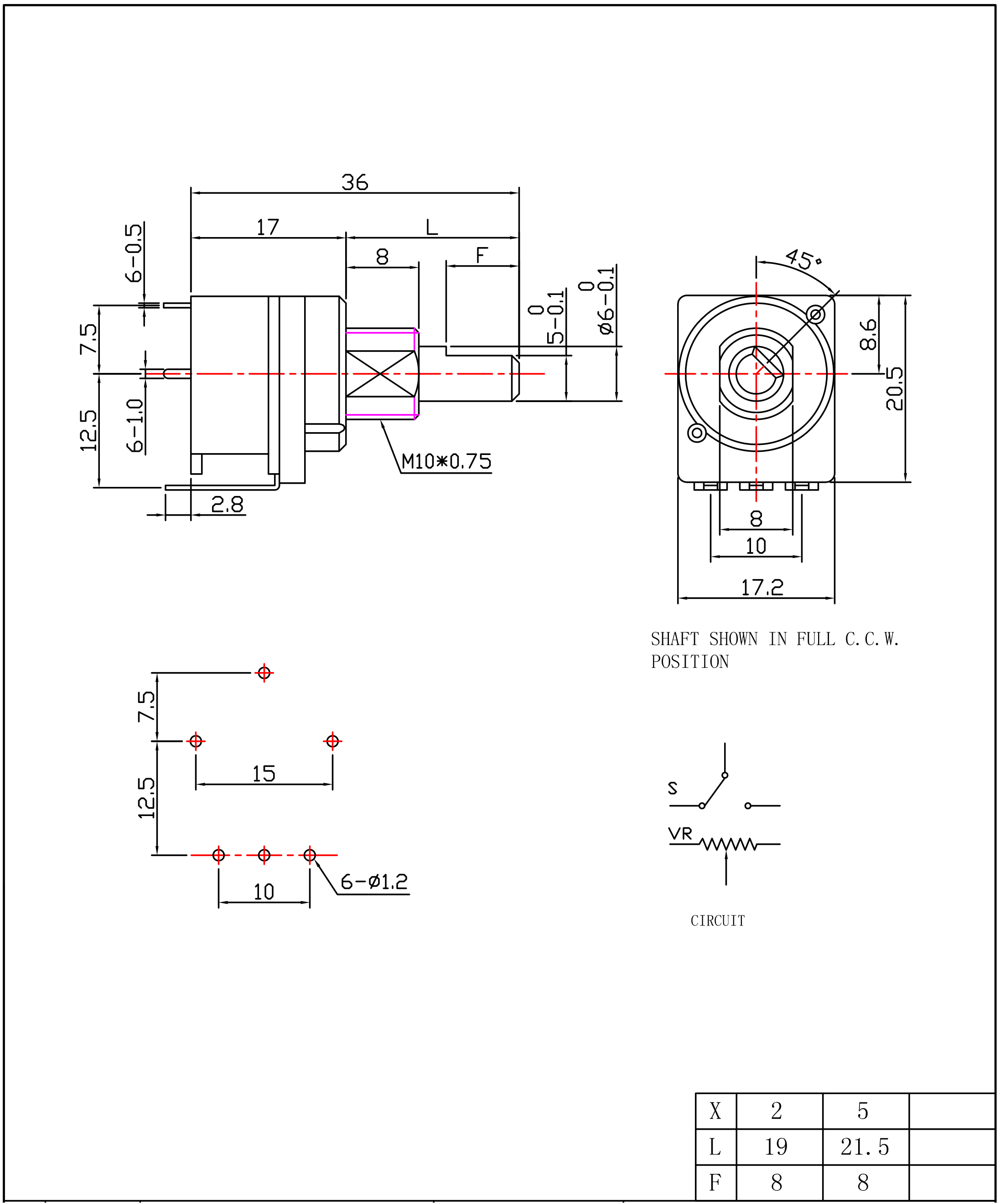

Dimmer Potentiometer switch RV17 datasheet
