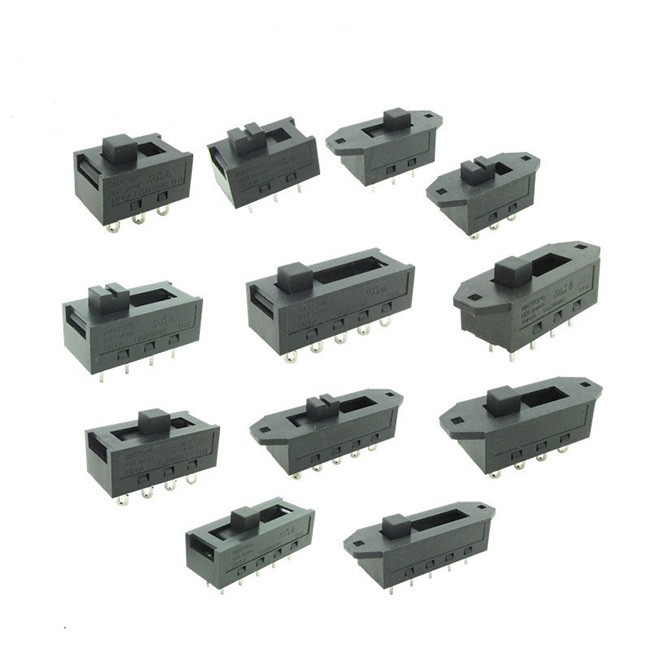

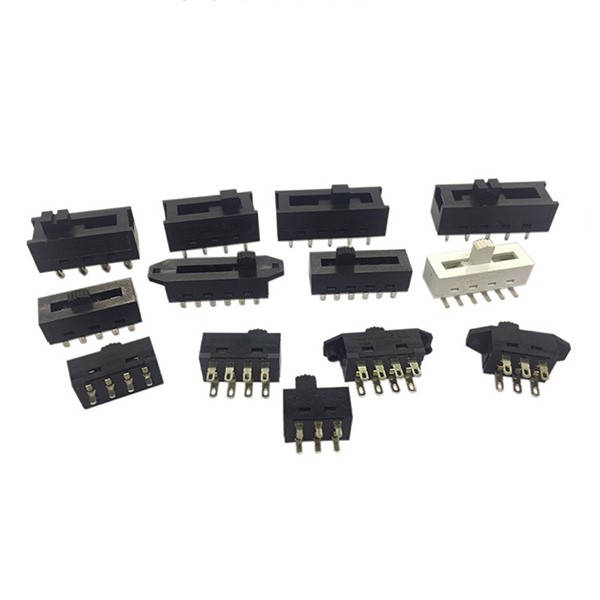

UL61058 Slide Switches

The Slide Switches have 2 to 6 Position,6A to 16A variety of functions to choose.UL,CQC,ENEC,CB etc Certification standards.
The Slide Switches have Automatic workshope, More efficient, Higher standard. Keep the cost down. * All the material RoHS Compliant, Materials bulk purchase keep the cost down.

Slide Switch MODEL :

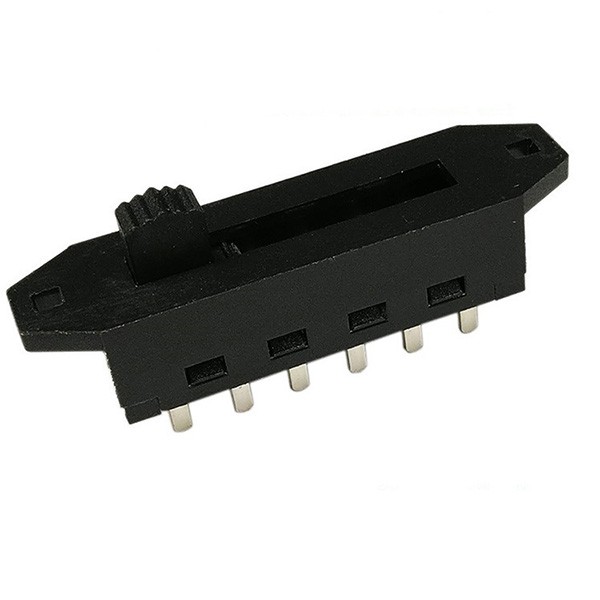

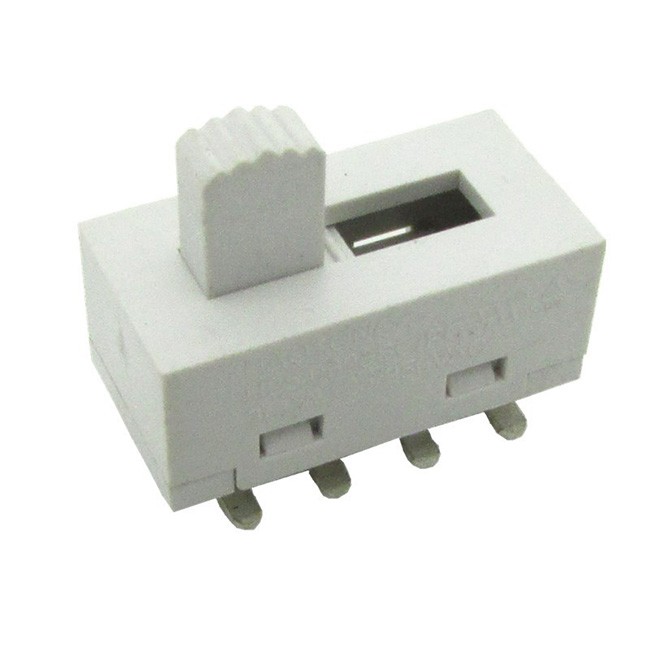

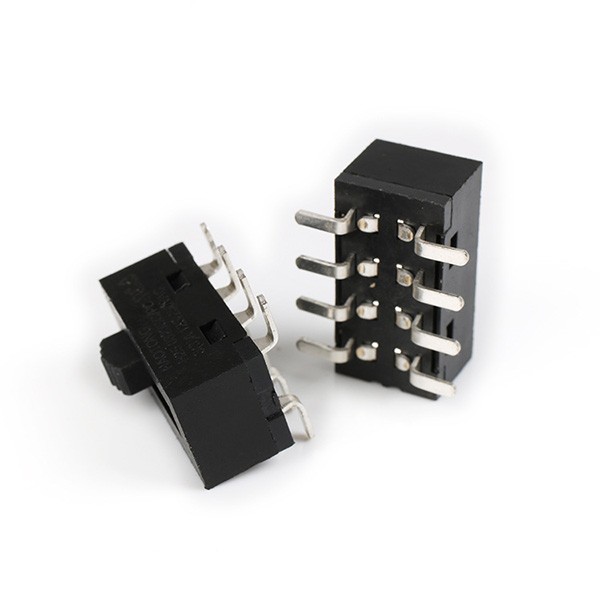

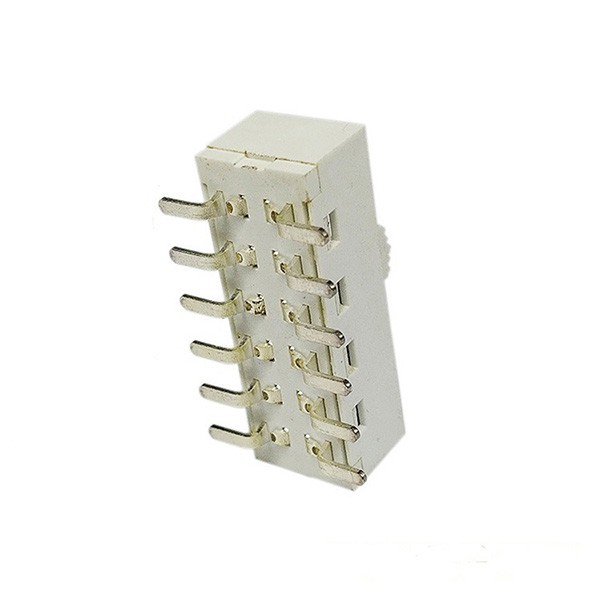

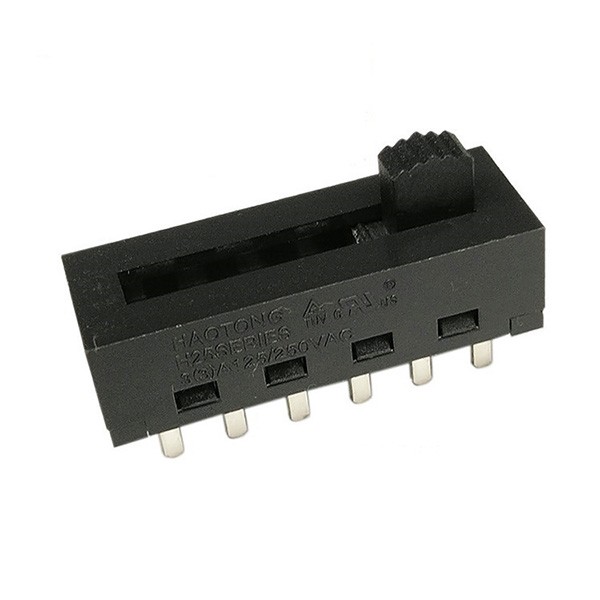

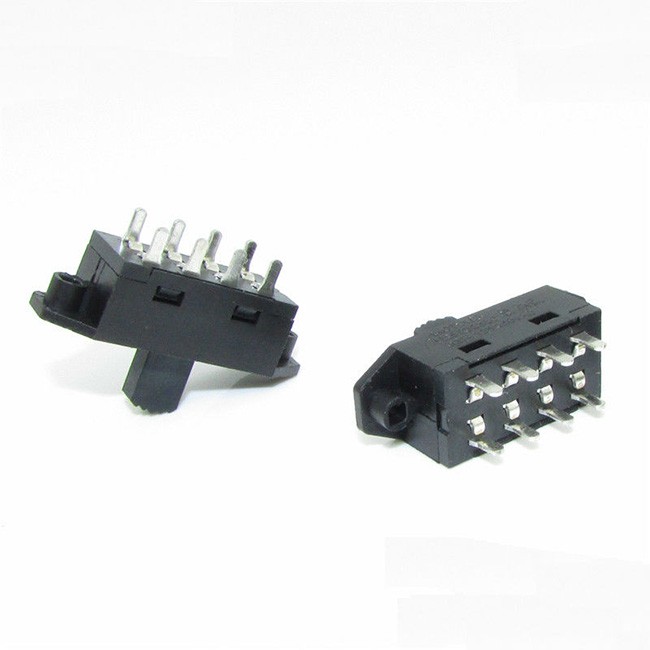

H25 UL61058 SLIDE SWITCH

QUICK CONNECTOR TYPE :

SP2T,DP2T,DP3T,DP4T,DP5T,DP6T

RATING :

16(4)A  125/250VAC

CONTACT RESISTANCE :

<50mΩ(INITIAL)

INSULATION RESISTANCE :

≥100MΩ(DC500V/1MIN)

DIELECTRIC STRENGTH :

1500V/0.5mA /1MIN

MECHANICAL LIFE :

>50000 CYCLES

ELECTRICAL LIFE :

>10000 CYCLES

SOLDER ABILITY OF TERMINAL:

MAX 350 °C, 3S

OPERATION FORCE :

850±300gf

MATERIALS :

ALL MATERIALS ARE ROHS COMPLIANT

slide switches drawing

slide switches datasheet
