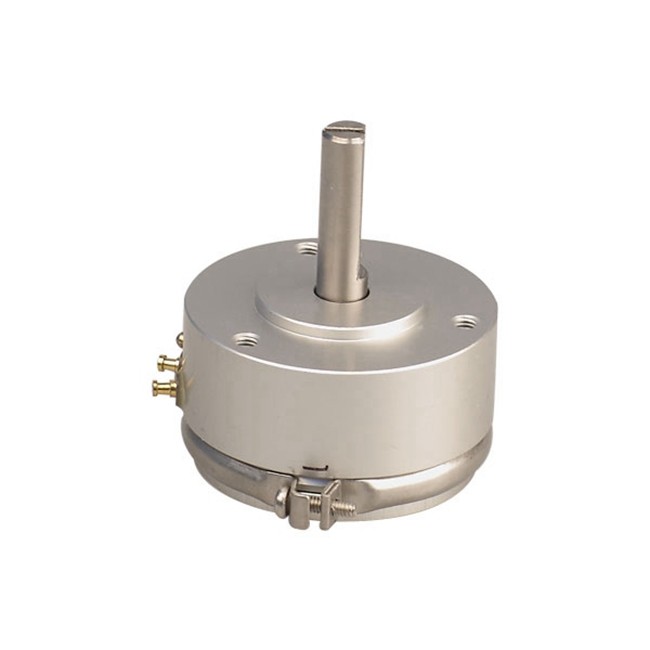

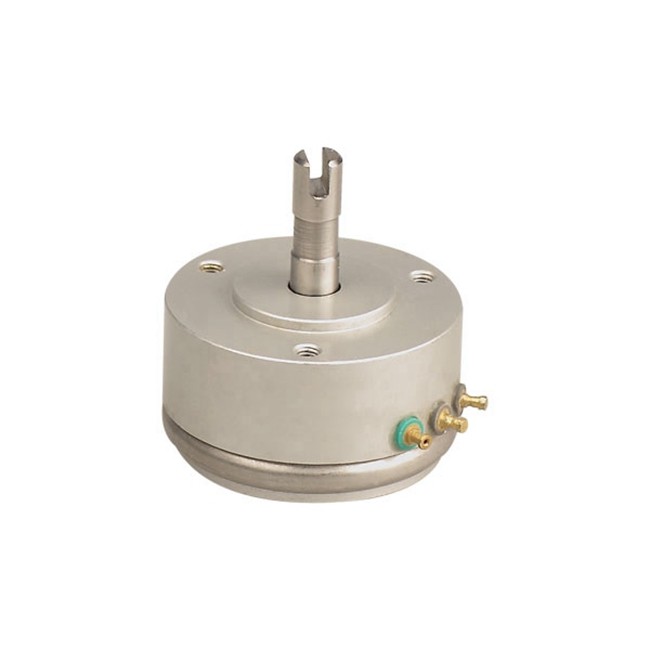

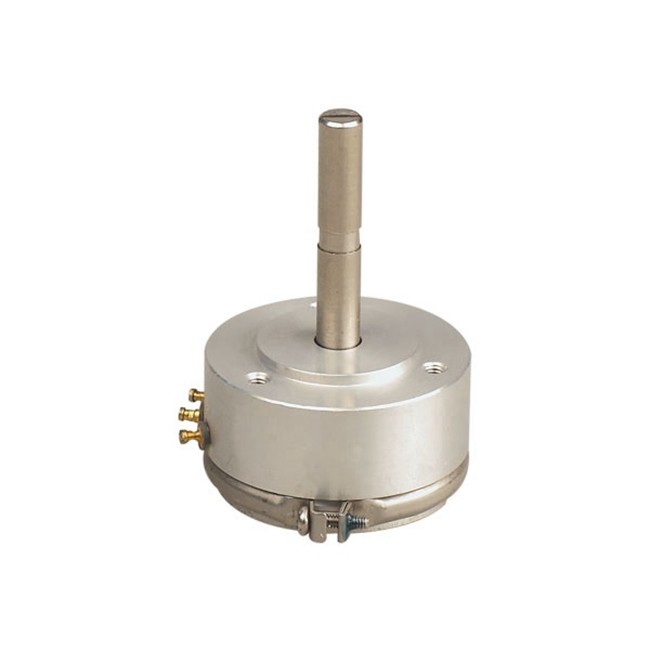

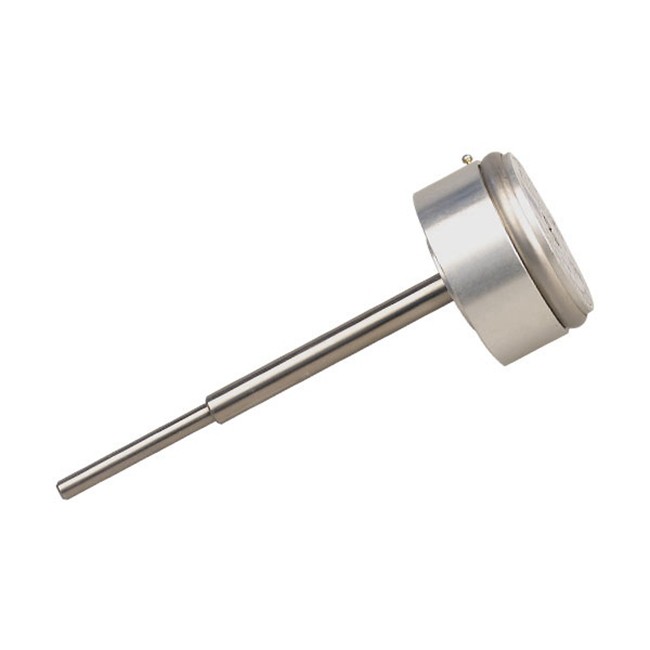

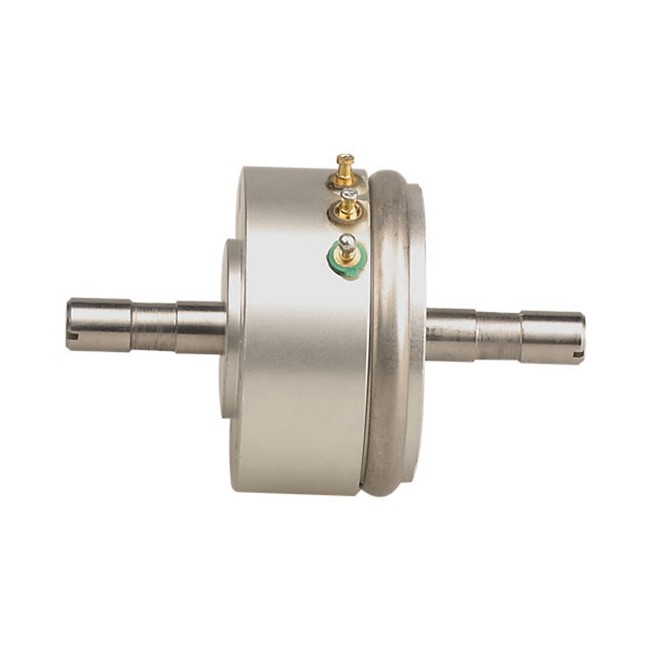

WDD35D Angle Sensor Potentiometer

WDD35D made of hard-antirust aluminum body, molded conductive plastic substrate andimported precious metal electric brush and Collecting components, stainless steel shaft matched with the high-speed.

Model: WDD35D-4

Standard Resistance Value: 1kΩ,2kΩ,3kΩ,5kΩ

Total Resistance Tolerance: ±15

Independent Linearity Tolerance(%): 0.1,0.2,0.3,0.5,1.0

Electrical Travel: 345°±2°

Mechanical Travel: 360°( endless)

Power Rating: 2W(70°C) FFOW(125°C)

Temperature coefficient of resistance: ≤0.04%/°C

Insulation Resistance: ≥1000M Ω(500VDC)

Dielectric Strength: 500V(AC.RMS)1min

Smoothing of output: ≤0.05

Working Temperature Range: -55°C+125°C

Stopper Strength: ≤1

Resistance tolerance:	±5, 10 and 20%
Dynamic smooth:	≤3%
Power rating:	2W (70°C)
Voltage rating:	250V
Insulated electric voltage:	1000V
Temperature range:	-65 to 125°C
Temperature coefficient:	≤500ppm/°C

Mechanical parameter: Angular Sensor WDD35D4

Electrical:
Standard Resistance	1K, 2K, 3K, 5K (Ω)
Resistance Tolerance	±15%
Independent Linearity	0.1%, 0.2%, 0.3%, 0.5%, 1.0%
Electrical Travel	345°±2°
Power Rating	2W ( @70°C )
Resist. Temperature Coefficient Of Wire	≤ ±400 P.P.M/°C
Insulation Resistance	≥1000MΩat 500V.D.C
Dielectric Strength	1 minute at 1000V(AC.RMS)
Output Smoothness	≤±0.10%
Mechanical:
Mechanical Travel	360°(Endless)
Starting Torque (MAX.)	≤10x10-4N.M
Bearing	2 Pairs Ball Bearing
Shaft	Stainless Steel
Housing Case	Aluminum alloy
Environmental:
Life Expectancy	Approx. 50,000,000(Shaft Revolutions)
Operating Temperature	-55°C~ +125°C
Vibration	15G 2000Hz
Shock	50G 11ms

WDD35D made of hard-antirust aluminum body, molded conductive plastic substrate andimported precious metal electric brush and Collecting components, stainless steel shaft matched with the high-speed bearings to ensure that the product has the excellent performances of high linearity, long mechanical life, high resolution, small dynamic noise.
