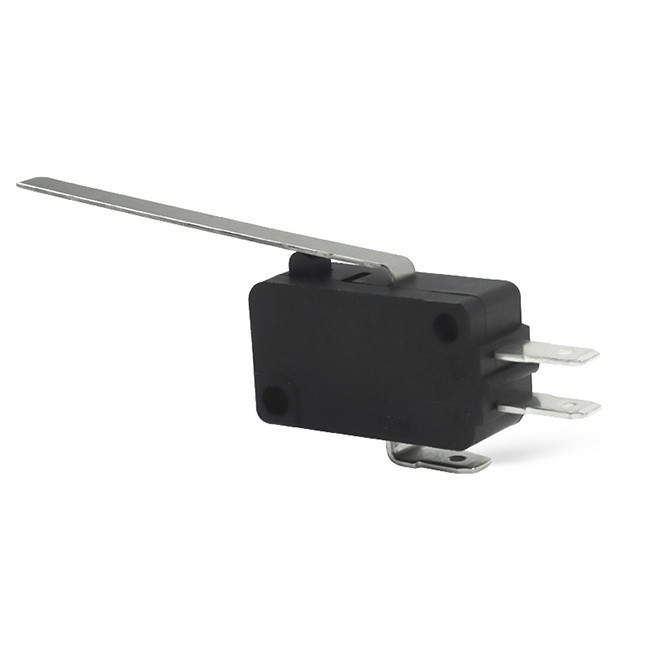

16A Micro Switches

The mini Micro Switches 16A250VAC Smaller pieces of action. Switch feel is good, contact points off quickly. Pieces of high quality of beryllium copper shrapnel provide sufficient contact pressure and guarantee the mechanical life

	Model	16A Micro SwitchES
	Electrical Life	10000 cycles
	Mechanical Life	50000 cycles
	Contact Resistance	less than 50mohm
	Voltage:	250VAC
	Electric current:	16 A
	Protection level:	Ip40
	Contact form:	SPDT，SPST
	Package:	CARTON
	Size:	27.810.315.9mm
	Certified:	CCC CE UL VDE

Operating speed		0.1mm-1m/s
Operating frequency		Mechanical:60 times/min
		Electrical:25 times/min
Initial insulation resistance		100MΩmin.(at 500VDC)
Initial contact resistance		25MΩmax.
Dielectric strength	Between non-consecutive terminals	1,000Vrms, 50/60Hz for 1 min
	Between non-current carrying metal parts and each terminal	1,500Vrms, 50/60Hz for 1 min
	Between ground and each terminal	1,500Vrms, 50/60Hz for 1 min
Vibration resistance		10-55Hz,1.5mm double amplitude
Shock resistance	Destruction	O.F.>0.5N:1000m/s2(Approx.100G)max. O.F.≤0.5N:400m/s2(Approx.40G)max.

	Malfunction	O.F.>0.5N:200m/s2(Approx.20G)max. O.F.≤0.5N:100m/s2(Approx.10G)max.

Operating life	Mechanical life	1,000,000 operations min.
	Electrical life	50,000 operations min.
Weight		Approx.6.2g (no lever)
