6A Micro Switches

The mini Micro Switches 6A250VAC Smaller pieces of action. Switch feel is good, contact points off quickly. Pieces of high quality of beryllium copper shrapnel provide sufficient contact pressure and guarantee the mechanical life

Item	6A Micro Switches
Certification	UL,TUV,CQC,ENEC
Place of Origin	China
Rating	6A250VAC 12A125VAC
Model Number	MS
Max. Current	6A, 3A, 1/3HP
Max. Voltage	125VAC, 250VAC
Operating Temperature	0-65℃
Protection Level	IP30
LED	no
Conductive Material	Silver alloy
Electrical Life	10000

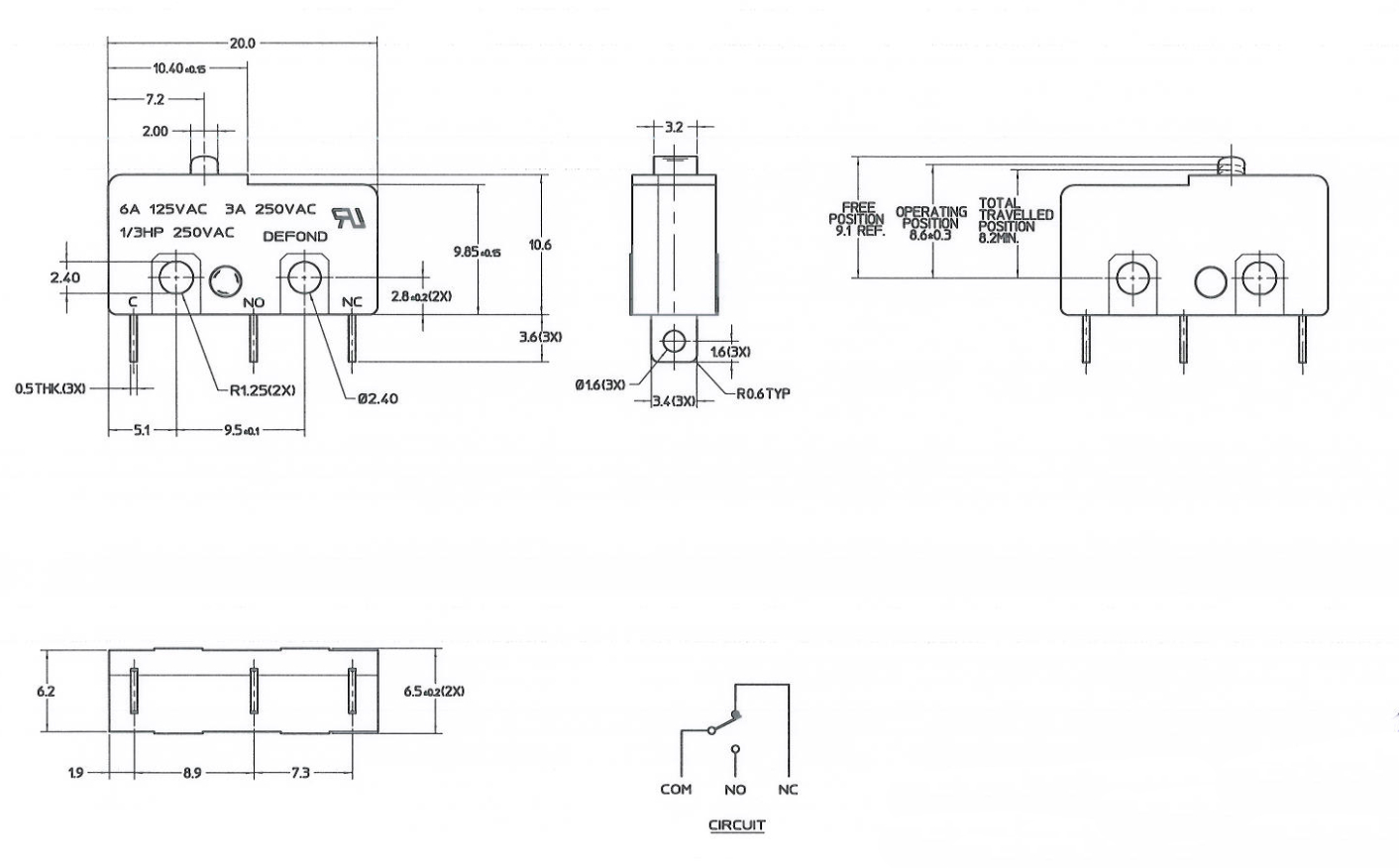

Size	20mmx10.6mmx6.5mm
Operating Force (range)	80-180gf
Insulation Resistance	50M ohm Min.
Contact Resistance	50m Ohm Max.
Pole	1
Throw	2
